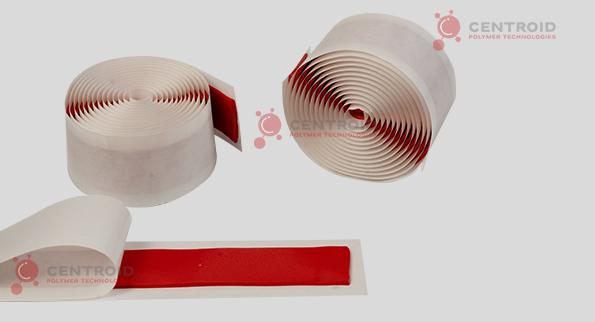

Red Anti-Tracking Sealing Mastic Tape is designed for high-voltage and medium-voltage cable insulation and sealing. Provides excellent anti-tracking, UV resistance, and weatherproofing in outdoor environments. Used for cable joint protection, termination sealing, and moisture barrier applications. The tape is non-tracking, flame retardant, and self-bonding for efficient performance. Supplied between two silicone release liners for clean, easy handling and application. Ideal for substations, power utilities, switchgear, and industrial electrical systems.
Features
| Anti-Tracking & Weather Resistant |
|---|
| Superior sealing and waterproof protection |
| Self-Bonding Mastic as it forms a cohesive seal without the need for heat or pressure. |
| Filling voids even for irregular shapes & joints |
| UV Resistant & Flame Retardant |
| High Dielectric Strength |
| Compatible with Medium & High Voltage Systems |
Technical info
| TEST DESCRIPTION | TEST STANDARD | SPECIFICATIONS | OBSERVED VALUE |
|---|---|---|---|
| Size | |||
| Width | Dimensional | 20-40mm | Custom Sizes available |
| Thickness | Dimensional | 1-2mm | Custom Sizes available |
| Length | Dimensional | As per Requirement | |
| Needle Penetration | ASTM D 217 | 50-100 unit | 70 |
| Softening point | ASTM D 36 | 90 oC (min) | 98 |
| Low Temp. Flexibility (4 hr at –20°C)" | ASTM C 765 | No crack | Pass |

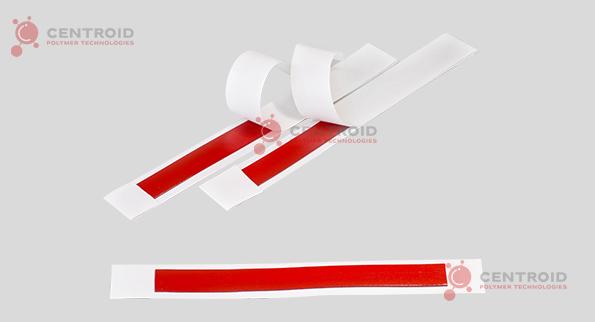

| Physical Form | In roll form and strip form with release paper on both sides | As per packing Standards | |
| Adhesive Tensile Strength | ASTM C 907 | 3 Kg / sq. cm^2 | 3.5 kg/cm.sq |
| Elongation / Stretch test | ASTM C 908 | Min elongation 300% | 500% |
| Tack Test | ASTM D 3121 | <18 cm | 12 |
| Peel Adhesion | ASTM D 3330 | >0.2kg/cm2 | 0.3kg/cm2 |
| Volume resistivity | ASTM D 257 | 1 x 10^12 ohm cm | 5x10^14 ohm cm |
| Dielectric const at 50 HZ, 500 V | ASTM D 150 | <4 | 2.8 |
| Dielectric Strength | ASTM D 149 | min 8/mm | 10kv/mm |
| Corrosion Resistance 168 hr at 90°C on Al conductor | ASTM D 150 | No chemical interaction / corrosion. | Pass |
Specifications
| CONSTRUCTION | The base material of the non-tracking sealant is thermally stabilized, blended rubber |
|---|---|
| INSTALLATION | Self-fusing Visco- Elastic property |
| SHELL LIFE | Permanently elastic & resistant to aging |
| AVAILABLE COLORS | Red |
| VOLTAGE CLASS | 11KV,25KV and 36KV joints & terminations |
| APPLICATIONS | Sealing and anti-tracking for power cable termination and joints |
| Fill the spacing between cable cores for insulation | |
| Bonding and sealing for connectors of electrical equipment & heat shrink mould parts |
