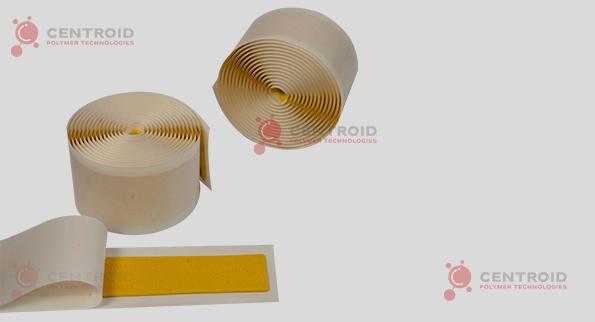

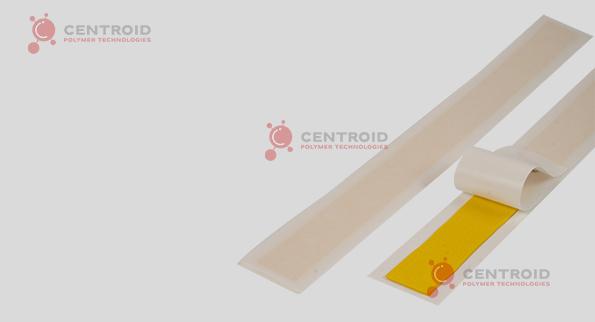

Stress Control Mastics also known as medium voltage cable joint tapes, electrical stress relief mastic, void-filling electrical tape, high dielectric constant yellow tape is engineered for medium voltage cable joints and terminations, providing superior electrical stress relief. Its self-fusing nature ensures seamless insulation, while its high dielectric strength and temperature resistance make it ideal for demanding environments.
Features
| Excellent waterproofing and high insulating properties |
|---|
| Excellent stress controlling and self-sticking properties |
| High adhesion properties and used in filling irregular shapes & voids |
| Resistant to corrosion & anti-aging |
| High Dielectric Constant |
| Low Dielectric Loss |
| Low Density |
Technical info
| PARAMETER | VALUE |
|---|---|
| Width | 5mm to 150mm |
| Thickness | 0.5mm to 10mm |
| Length | As per Requirement |
| Needle Penetration | 35 |
| Softening point | 105 deg C |
| Low Temp. Flexibility (4 hr at –20°C) | Pass |
| Adhesive Tensile Strength | 1.8 kg/cm2 |
| Elongation / Stretch test | 700% |
| Tack Test | 22 cm |
| Peel Strength Electrical Propertiesperties | 0.18kg/cm2 |
| Volume resistivity | 2x10 100 ohm cm |
| Dielectric const at 50 HZ,500 V | 17 |
| Dielectric Strength Corrosion Resistance | 8.5 |
| 168 hr at 90°C on Al conductor | Pass |
Specifications
| PURPOSE | Consists of Butyl rubber, balance electric field, reducing electrical stress. |
|---|---|
| SHELL LIFE | 20 + years |
| INSTALLATION | Self-sticking properties makes it widely used in heat & cold Shrink technologies |
| AVAILABLE COLORS | Custom Options |
| VOLTAGE CLASS | 10KV, 35KV,110KV, 220KV |
| APPLICATIONS | Provides stress relief of the electrical field in all MV cables joints and terminations for power cable applications. |
| Filling voids and irregular shape |
