High-performance sealing solution designed for waterproofing roofs, walls, façades, and cladding joints. It provides excellent adhesion to metal, concrete, wood, and plastic surfaces without the need for primers. The tape remains permanently flexible, accommodating building movement and thermal expansion. It offers long-lasting weather, UV, and moisture resistance for indoor and outdoor applications. Ideal for sealing overlaps, joints, and seams in construction and architectural facades. Easy to apply, mess-free, and compatible with most roofing membranes and panels.
Features
| Effective water sealant and fills voids |
|---|
| Withstand harsh environments, offering optimal sealing performance |
| Adhesive Versatility : Sticks firmly to a wide range of surfaces, including metals, glass, concrete, plastics, and more. |
| Resistant to corrosion,anti-aging and enhances roof strength |
| Cost effective, non toxic and eliminate leaks reducing repairs |
Technical info
| TEST DESCRIPTION | TEST STANDARD | TYPICAL RESULT | TEST DESCRIPTION | TEST STANDARD | TYPICAL RESULT |
|---|---|---|---|---|---|
| Specific Gravity | ASTM D 792 | 1.47 | Peel Adhesion | AAMA 800 1/16"(0.158cm) thick | |
| Density | ITW Lab | 13.54 Lbs/Gal 1.62 Kg/Liter | Galvalume | AAMA 800 1/16"(0.158cm) thick | 16 (2.8)/100 |
| % Solids | ITW Lab | 100% | Anodized Aluminum | AAMA 800 1/16"(0.158cm) thick | 16 (2.8)/100 |
| Tensile Ad.Strength PSI(kPA) % Cohesive Separation | ASTM C 907 | 20 (138) 95 | Mill Finish Aluminum | AAMA 800 1/16"(0.158cm) thick | 16 (2.8)/100 |
| Yield Strength PSI(kPA) | ASTM C 908 | 8 (55) | Polyvinylidene Fluoride | AAMA 800 1/16"(0.158cm) thick | 17 (2.8)/100 |
| % Elongation | ASTM C 908 | >1000 | PVC Plastisol | AAMA 800 1/16"(0.158cm) thick | 17 (2.8)/100 |
| Water Resistance | AAMA 800 | No Effects | Polyester | AAMA 800 1/16"(0.158cm) thick | 16 (2.8)/100 |
| Hardness (Shore 00) | AAMA 800 | 50-60 | Siliconized Polyester | AAMA 800 1/16"(0.158cm) thick | 16 (2.8)/100 |
| Cone Penetration (0.1mm)@77° F (25° C) | ASTM D 217 300g cone (5 Sec) | 85-100 | |||
| Cone Penetration (0.1mm) @120° F (48.8° C) | ASTM D 217 300g cone (5 Sec) | 125-135 | |||
| Cone Penetration (0.1mm)@0° F (-17.7° C) | ASTM D 217 300g cone (5 Sec) | 45-55 | |||
| Application Temp. Range | ITW Lab | -5° F to 120° F (-20° C to 49° C) | |||
| Service Temp. Range | ITW Lab | -40° F to 200° F (-40°C to 93°C) | |||
| Color | Visual ITW Test | Light Grey | |||
| Weatherability QUV ,340A lamp 1000Hrs | ITW Lab | Excellent, no cracking, chalking, wash-off, flow | |||
| 6" Static Water Pressure | ASTM proposed | Pass - No Leakage | |||
| Water Penetration | ASTM E 1646 | Pass - No Leakage |
Specifications

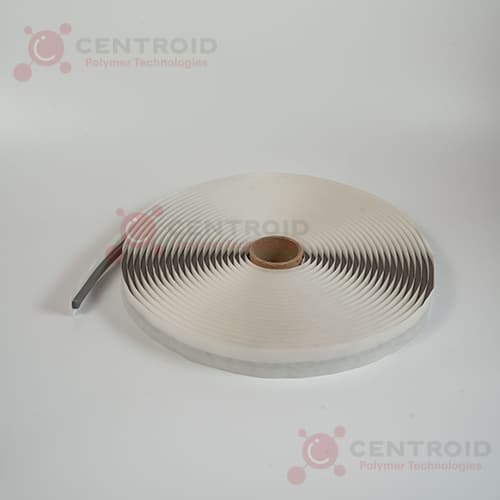

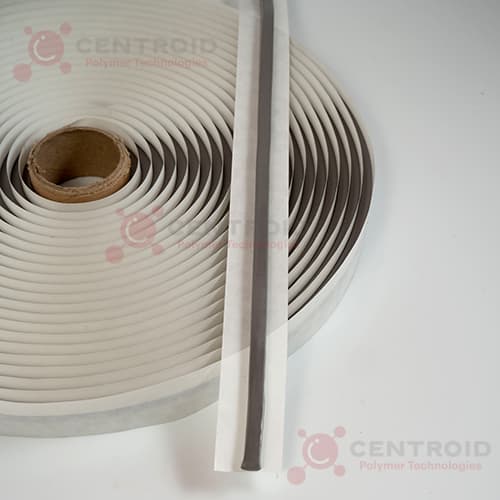

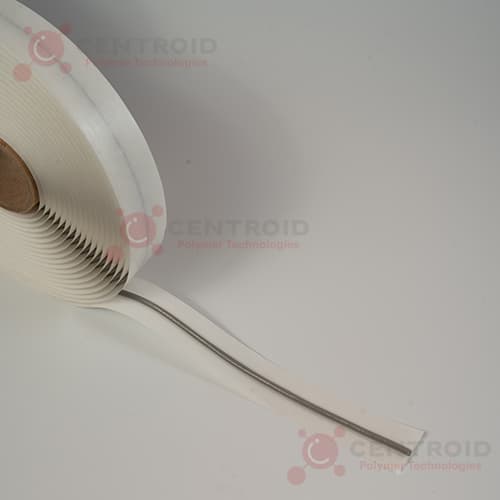

| CONSISTS OF | Double sided butyl based sealing tape. |
|---|---|
| INSTALLATION | Under pressure, it conforms to surface imperfections, creating a tight seal against water, mois ture, dust, and dirt. |
| AVAILABLE COLOURS | Grey |
| APPLICATIONS | Ideal for sealing around windows, doors, roof vents, stacks, access doors, and other critical points on metal roofs |
| SHELL LIFE | 20 |
