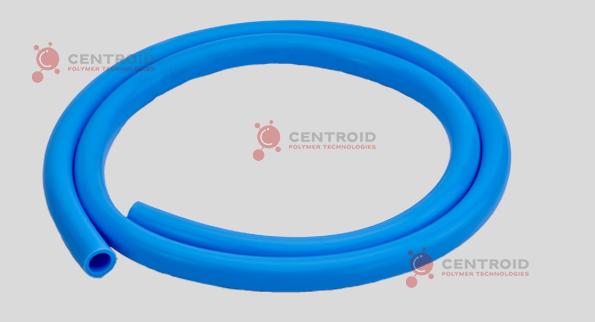

Silicone Vacuum Tube, offers excellent flexibility and durability for a variety of industrial and medical applications. Manufactured using a peroxide-curing process, this tube is ideal for vacuum systems, fluid transfer, and low-pressure applications. With resistance to high temperatures, chemicals, ozone, and UV exposure, it performs well in demanding environments. The tube's non-toxic, odourless, and FDA-approved construction ensures safe use in food, pharmaceutical, and healthcare settings. It provides superior flexibility, making it suitable for tight bends and dynamic environments.
Features
| Un-reinforced Silicone Tubing – 70 Durometer |
|---|
| Easy to Clean & Sterilize – Suitable for repeat sterilization cycles, ensuring hygiene and safety in sensitive environments. |
| Meets and exceeds all performance and physical criteria of SAE J20 R3, TMC RP303B Grade I and II, Mil Spec A-A- 52426, and various other heavy-duty OEM specifications. |
| Offers excellent ozone and UV resistance. |
| Commonly used in applications such as vacuum connections, as well as any non-pressured or vacuum application where high temperatures or extreme working conditions are present. |
| High temperature resistance, performs reliably in temperatures from -60°C to +200°C, ideal for high-heat applications. |
| Resistant to electrochemical degradation. |
| FDA Approved – Non-toxic, odorless, and safe for food, pharmaceutical, and medical applications |
Technical info
| Parameters | Values |
|---|---|
| Thickness | 0.1mm~5mm |
| Diameter | 5mm~150mm |
| Specific Gravity | 0.9g/cm3~1.3g/cm3 |
| Resistant | Oil, chemical, heat |
| Color | Pantone Card and transparent |
| Hardness | 20~90 Shore A |
| Appearance | Smooth/Wave/Braided |
| Temperature | -40°C - 200°C |
| Tear Strength | Up to 25 Mpa |
| Elongation | 300-650% |
| Anti-Flammable | FRAS approved |
| Acid and Alkali Resistance | Available |
| Food Grade | FDA Approved |
| Water Absorption | 20% for silicone, 80% for sponge |
| Aging Period | 5 years under right environment |
| Chemical Safe | ROHS certificate |
Specifications
| Not compatible with | Compatible with |
|---|---|
| Hydrocarbon Fuels | Oils |
| Alkalis & Acids | Brake Fluids |
| Steam over 121 deg C / 249 deg F | Hot and Cold Water |
| Trichlorethylene | Salt Water |
| Aromatic Hydrocarbon | High Molecular weight chlorinated hydrocarbons |
| Fire resistant hydraulic Fluid |
