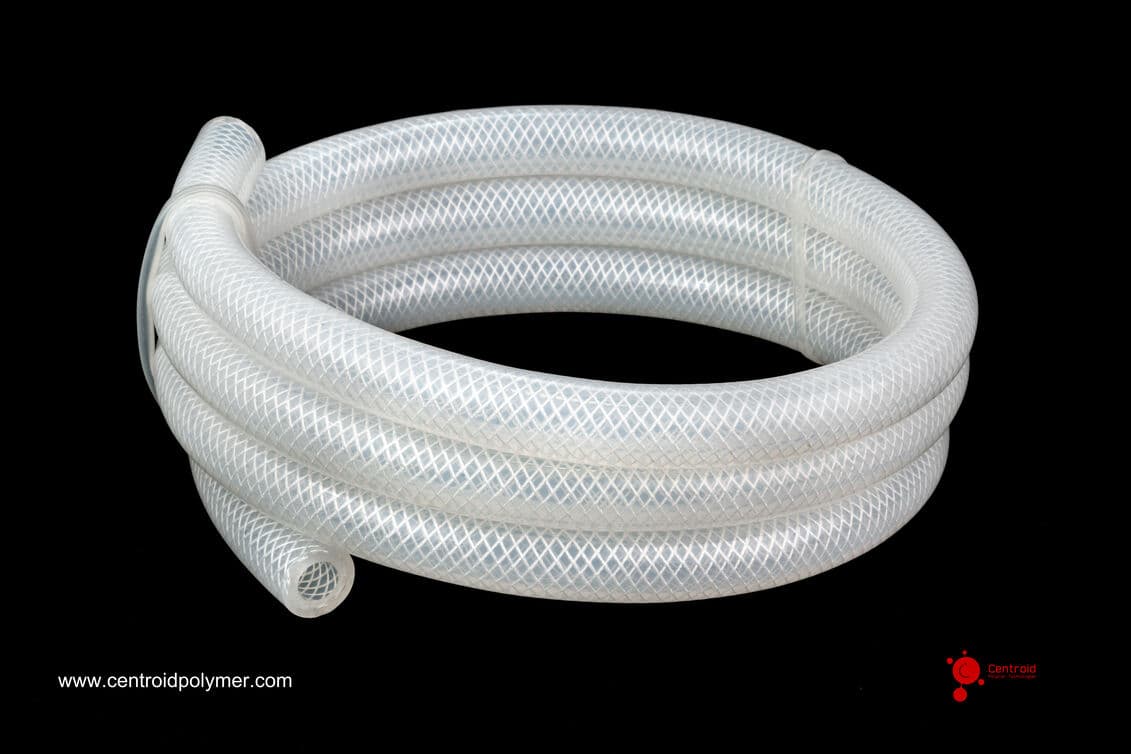

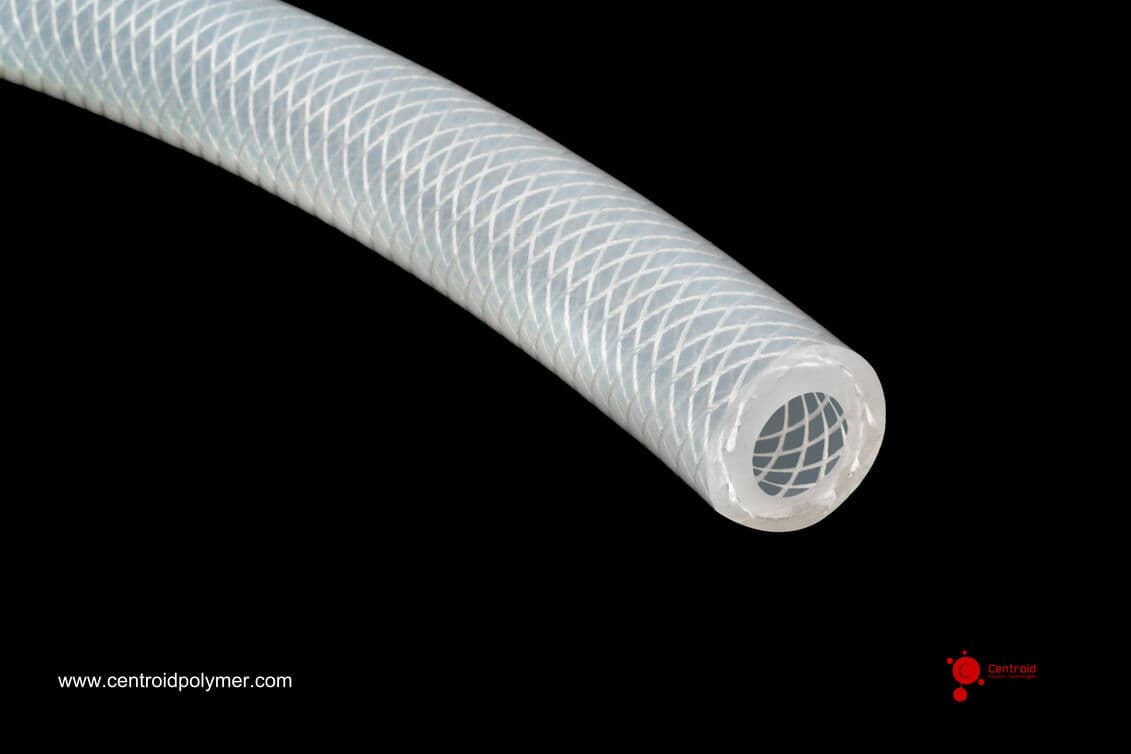

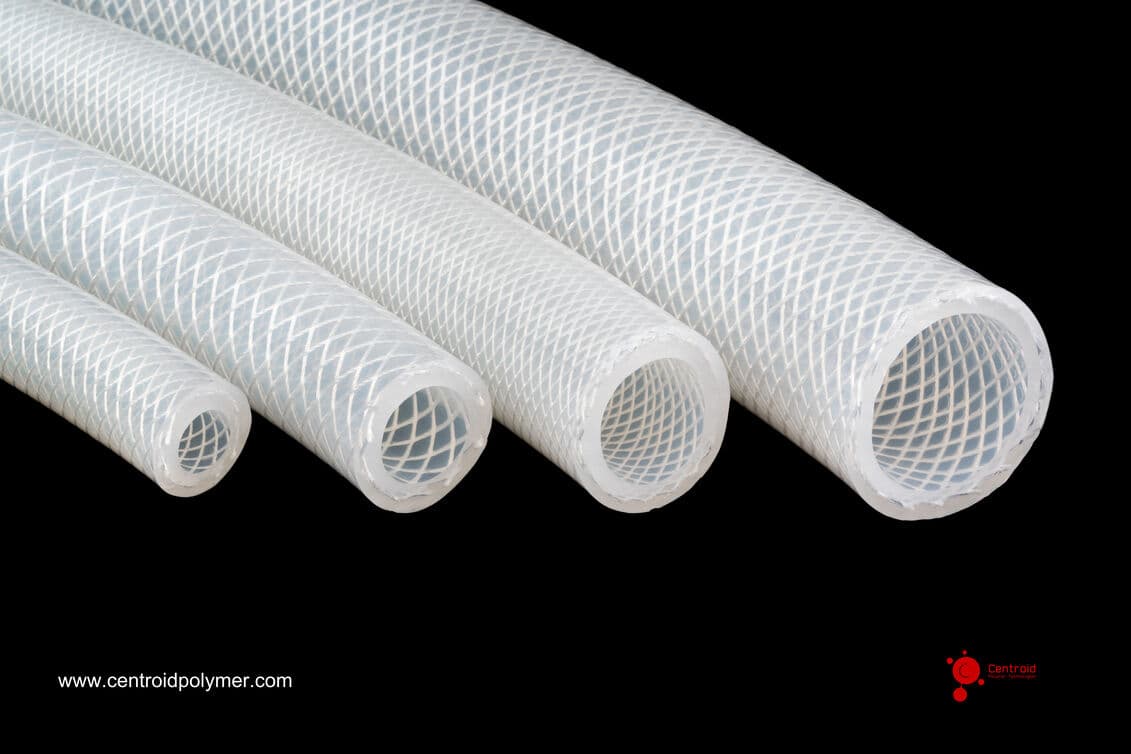

Silicone Braided Hoses are high-strength, reinforced medical grade silicone tubes designed for pressure and high-temperature fluid transfer. They offer excellent flexibility, kink resistance, and durability under dynamic operating conditions. Widely used in pharmaceutical, food & beverage, medical, and industrial fluid handling. Odorless, non-toxic, and compliant with FDA, USP Class VI, and BfR standards. Ideal for applications requiring hygienic, high-purity, and heat-resistant silicone tubing.
Features
| Platinum-cured for the highest level of purity. |
|---|
| High-Pressure Resistance & Excellent Temperature Stability(-100°F to 400°F) |
| Meets USP Class VI requirements |
| Raw materials comply with FDA regulations under FDA 21 CFR 177.2600 for use with food contact surfaces. |
| Listed by the National Sanitation Foundation (NSF-51) for food and beverage equipment materials. |
| Odorless, tasteless, and inert |
| RoHS compliant |
| Reusable — designed to withstand repeated sterilization. |
| Free from BPA, latex, and phthalates. |
| Kink-resistant yet highly flexible. |
| Translucent natural color allows visual monitoring of the flow. |
| Manufactured in a controlled environment. |
| Excellent weatherability — resistant to UV, ozone, gases, moisture, and extreme temperatures. |
Technical info
| Parameters | Values |
|---|---|
| Hardness, Shore A ±5 – Liner | 70 |
| Hardness, Shore A ±5 – Cover | 60 |
| Tensile Strength, psi | 1320 |
| Elongation at Break, % | 630 |
| Tear Resistance, Die B, ppi | 320 |
| Modulus at 100%, psi | 500 |
| Brittle Temperature, °F | -100 |
| Maximum Operating Temperature, °F | 400 |
