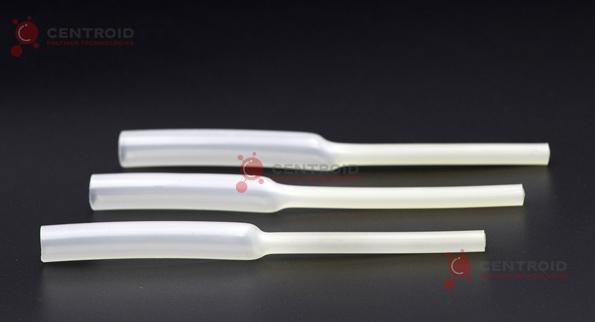

Designed for high-performance electrical insulation, sealing, and protection in harsh environments. It shrinks uniformly when heated, forming a tight seal around wires, connectors, or components. Made from high-purity silicone rubber, it offers excellent thermal stability and flexibility. Ideal for aerospace, medical devices, automotive, and high-voltage electrical systems. Resistant to heat, chemicals, UV, and moisture, ensuring long-term reliability. Available in various shrink ratios, wall thicknesses, and custom colors to meet application needs
Features
| High Shrink Ratio – Typically 2:1 or 3:1 shrink ratio for tight, uniform coverage. |
|---|
| Wide Temperature Resistance – Operates from -60°C to +200°C. |
| Excellent Electrical Insulation |
| Biocompatible Options – Medical grade available for catheter and sensor applications |
| Resistant to UV, Chemicals & Moisture |
| Flexible and Tear-Resistant |
Technical info
| PROPERTIES | FLAME RETARDANT TYPE | NON-FLAME RETARDANT TYPE |
|---|---|---|
| Tensile strength | 4.0MPa | 6.9MPa |
| Ultimate elongation | 150% | 200% |
| Tear strength | 10KN/m | 14KN/m |
| Volume resistivity | 2×1012m (2×1014 Ω cm ) | 2×1012 Ω·m (2×1014 Ω·cm ) |
| Dielectric strength | 20kV/mm | 20kV/mm |
| Dielectric constant (E)50HZ | 3.2 | 3.2 |
| Dielectric loss angle tangent 50HZ | 0.001 | 0.001 |
| Operating temperature | -50C ~ 200C | -5C ~ 200C |
| Shrink temperature | >90 C | >90 C |
Specifications
| Material | High-purity silicone rubber for superior electrical and thermal performance |
|---|---|
| Shrink Ratio | 2:1 or 3:1 (standard options, other ratios available on request) |
| Temperature Range | 60°C to +200°C |
| Wall Thickness (Post-Shrink) | 0.3 mm to 1.5 mm (depending on the size and shrink ratio) |
| Flame Retardancy | Self-extinguishing properties, meeting UL 94-V0 (flame retardant) |
